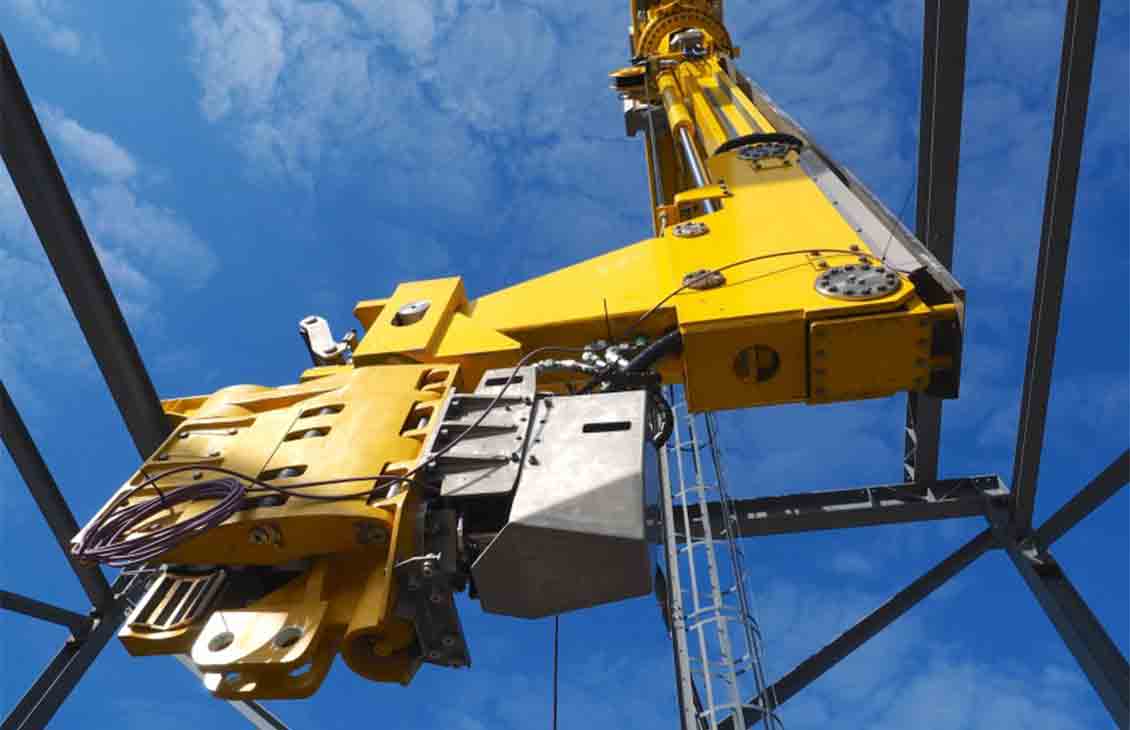

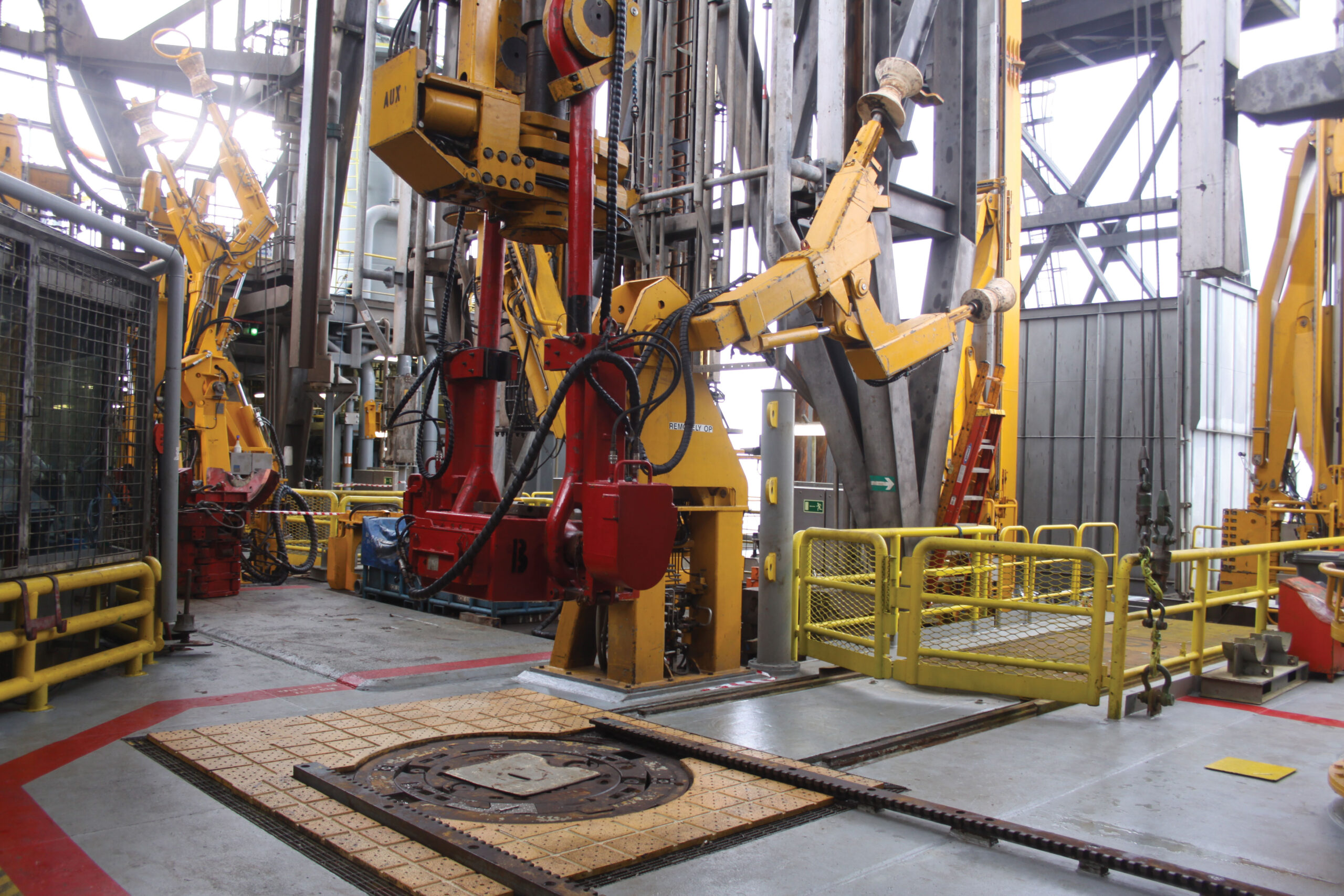

TAYMA Automatic Pipe Handling System
Overview
The TAYMA Automatic Pipe Handling System (APHS) is a next-generation drilling solution designed to maximize efficiency, safety, and automation in modern oilfield operations. Engineered with precision and reliability, this system automates the full cycle of tubular handling—from pipe pickup and racking to tripping in and out of the well—significantly reducing manual labor and rig floor risk.
The TAYMA APHS incorporates advanced hydraulics, intelligent controls, and rugged construction to ensure seamless integration with land rigs, swamp rigs, and offshore drilling platforms.
Key Features
-
Fully Automated Handling – Automated pickup, racking, and feeding of drill pipe, drill collars, and casing.
-
Enhanced Safety – Eliminates manual pipe handling, drastically reducing risk of injury on the rig floor.
-
High Efficiency – Rapid tripping speeds and optimized handling cycles improve rig uptime and reduce flat time.
-
Versatility – Compatible with multiple rig types, including land rigs, swamp barge rigs, and offshore units.
-
Heavy-Duty Construction – Built with reinforced steel, advanced hydraulics, and intelligent control systems for long service life.
-
Smart Controls – Programmable logic controller (PLC) and human-machine interface (HMI) for precise operation and monitoring.
-
Customizable Options – Configurations available for 500 HP to 4,000 HP rigs, tailored to client requirements.
Technical Highlights (Typical System)
| Specification | Value (Typical) |
|---|---|
| Handling Capacity | 3½”–6⅝” drill pipe, casing, collars |
| Lifting Capacity | Up to 5 tons per joint |
| Racking Board Capacity | 10,000–20,000 ft of tubulars |
| Tripping Speed | 20–30 joints per hour (config. dependent) |
| Control System | PLC with touchscreen HMI |
| Power Supply | Integrated hydraulic/electric drive |
| Rig Compatibility | Land rigs, swamp barge rigs, offshore rigs |
Why Choose TAYMA Over Competitors?
✅ Global Expertise with Local Service – Unlike standard OEM suppliers, TAYMA combines international engineering know-how with localized support and faster delivery.
✅ Customization – We don’t just sell one-size-fits-all systems. Every TAYMA Automatic Pipe Handling System can be adapted to specific rig layouts, power requirements, and drilling environments.
✅ Reliability and Durability – Built on proven inspired technology, refined with TAYMA’s engineering innovations for extended service life and reduced maintenance downtime.
✅ Operator Safety Priority – Our designs are centered on minimizing crew exposure to hazardous lifting, aligning with the latest international HSE standards.
✅ Full Lifecycle Support – From commissioning and training to spare parts and 24/7 service, TAYMA ensures your operations never stop.
