TAYMA API Workover Rig is a self-propelled, API-certified unit designed for high mobility and efficiency in onshore well servicing operations. Capable of servicing wells up to 8,500 meters deep, it offers robust performance in challenging terrains.

Category: Tags: , , , , , , , , , , , , , ,

Description

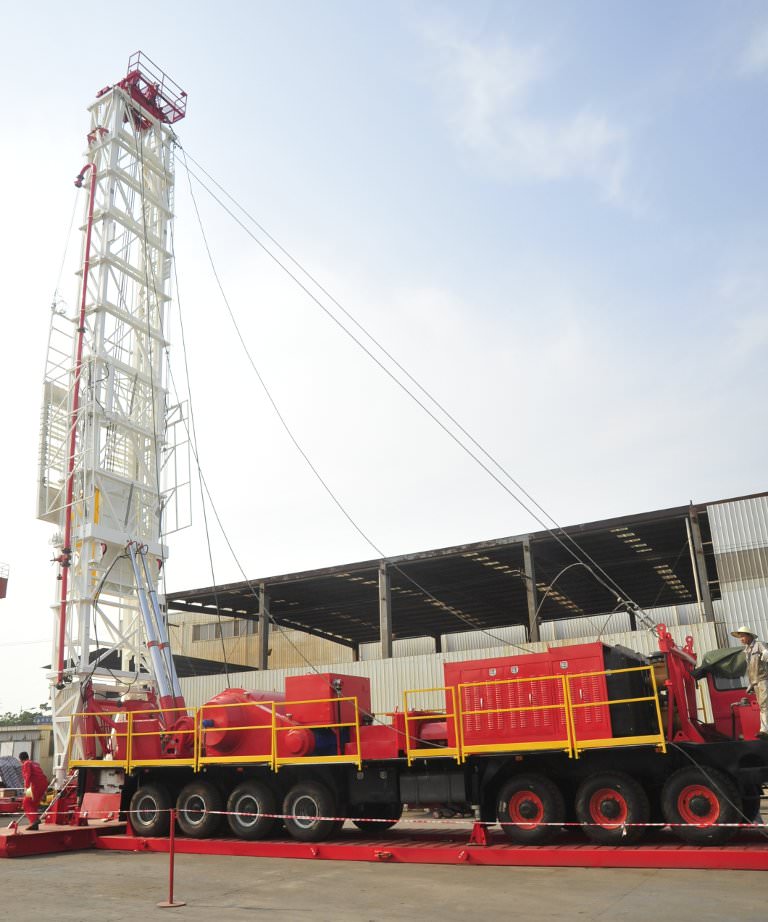

TAYMA API Workover Rig

Model: TAY-WOR Series
Manufacturing Location: China
Certification: API Spec 4F, 7K, 8C
Climate Range: -35°C to +50°C (-31°F to +122°F)
Intended Use: Onshore well servicing, including workover, completion, and intervention operations.

Overview

The TAYMA API Workover Rig is a self-propelled, API-certified unit engineered for high mobility and efficiency in onshore well servicing operations. Designed to operate in diverse terrains—from deserts and plains to rugged and remote areas—this rig combines proven mechanical systems with advanced technology to ensure reliable performance and cost-effective operations. With capabilities ranging from 1,600 meters to 9,000 meters in service depth, the TAYMA Workover Rig is adaptable to various well intervention requirements.sovonex.com

Key Features

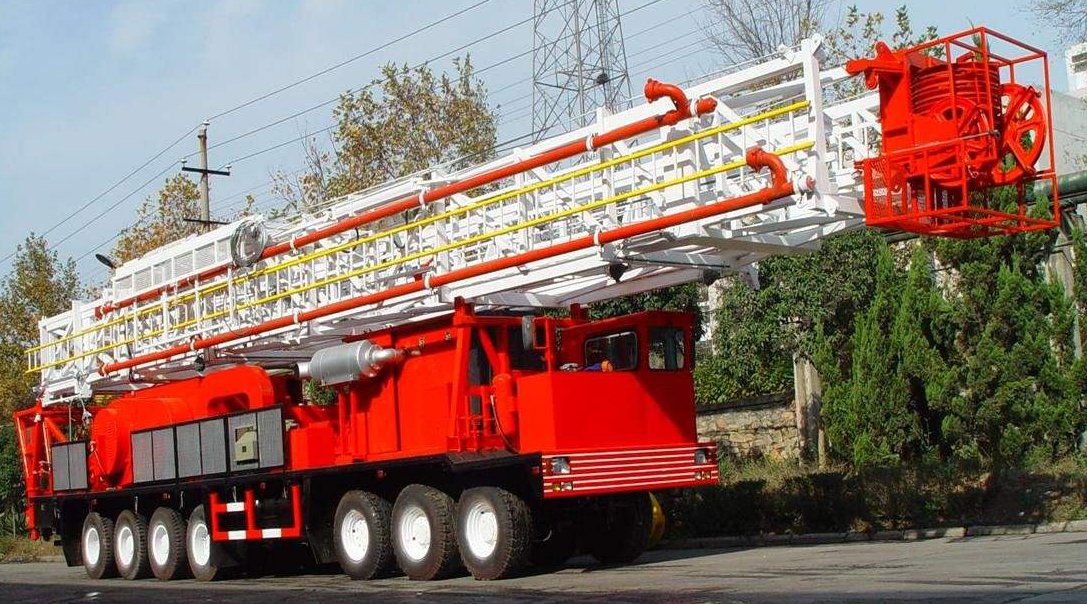

1. Mobility and Chassis Design

  • Self-Propelled Units: Equipped with powerful engines and advanced suspension systems, allowing for easy relocation between well sites without the need for external transport.

  • Chassis Construction: Designed for extreme stability with a small turning radius, facilitating maneuverability in tight and challenging terrains.

  • Suspension Options: Available with single-wheel independent suspension, enhancing traction and stability on uneven surfaces.

2. Workover Capacity

  • Service Depth: Capable of servicing wells up to 8,500 meters (27,900 feet) using 2-7/8″ EUE tubing.

  • Workover Depth: Suitable for workover operations up to 9,000 meters (29,530 feet) with 2-7/8″ drill pipe.

  • Drilling Depth: Equipped for drilling operations up to 6,000 meters (19,690 feet) with 4-1/2″ drill pipe.

  • Hook Load Capacity: Ranges from 350 kN to 2,250 kN (78,700 lbs to 500,000 lbs), accommodating various well intervention requirements.sovonex.com

3. Power and Drive Systems

  • Main Engines: Powered by Caterpillar diesel engines, ensuring reliable and efficient operation.

  • Drawworks: Equipped with mechanical or compound drive systems, offering flexibility and performance tailored to specific well servicing needs.

  • Transmission: Allison transmissions provide smooth power delivery and durability.

4. Mud Circulation System

  • Mud Pumps: High-capacity mud pumps ensure effective circulation and wellbore cleaning.

  • Mud Tanks: Designed to handle large volumes of drilling fluid, with features to facilitate mixing and separation processes.

5. Rig Components

  • Mast: Constructed to API Spec 4F standards, providing structural integrity and support during well servicing operations.

  • Rotary Table: Designed to API Spec 7K, ensuring reliable rotation and handling of drill string.

  • Swivel: Manufactured to API Spec 8C, allowing for smooth and safe rotation of the drill string.

6. Safety and Control Systems

  • Blowout Preventer (BOP): Equipped with annular and ram BOPs to control well pressure and prevent blowouts.

  • Control Systems: Advanced monitoring and control systems for real-time data acquisition and operational oversight.

7. Auxiliary Systems

  • Power Generation: Includes diesel generator sets to supply electrical power to rig systems.

  • Lighting: Wellsite lighting systems to ensure visibility and safety during night operations.

Applications

  • Onshore Well Servicing: Ideal for workover, completion, and intervention operations in onshore wells.

  • Geothermal Well Maintenance: Suitable for maintenance and intervention activities in geothermal wells.

  • Oil and Gas Production: Effective for production enhancement and well optimization in onshore oil and gas fields.

Why Choose TAYMA Workover Rig

  • API Certification: All components are manufactured to API specifications, ensuring quality and reliability.

  • High Mobility: Self-propelled design allows for quick relocation between well sites, reducing downtime.

  • Robust Construction: Built to withstand harsh environmental conditions, ensuring longevity and durability.

  • Cost-Effective: Competitive pricing compared to established manufacturers, offering value without compromising quality.

  • Comprehensive Support: Full after-sales service, including training, spare parts supply, and technical support.
