Description

TAYMA Mobile Drilling Rig

Model: TAY-MDR Series
Manufacturing Location: China
Certification: API Spec 4F, 7K, 8C
Climate Range: -35°C to +50°C (-31°F to +122°F)
Intended Use: Onshore drilling operations in challenging terrains such as deserts, mountains, and remote areas.

Overview

The TAYMA Mobile Drilling Rig is a self-propelled, API-certified drilling unit designed for high mobility and efficiency in onshore drilling operations. Engineered to navigate rough terrains, these rigs are ideal for drilling wells ranging from 1,000 meters to 4,000 meters in depth. Built with robust components and advanced technology, TAYMA rigs ensure reliable performance and cost-effective operations in remote locations.

Key Features

1. Mobility and Chassis Design

• Self-Propelled Units: Equipped with powerful engines and advanced suspension systems, allowing for easy relocation between drilling sites without the need for external transport.

• Chassis Construction: Designed for extreme stability with a small turning radius, facilitating maneuverability in tight and challenging terrains.

• Suspension Options: Available with single-wheel independent suspension, enhancing traction and stability on uneven surfaces.

2. Drilling Capacity

• Drilling Depth: Capable of drilling wells up to 4,000 meters (13,000 feet) using 4-1/2″ drill pipe.

• Hook Load Capacity: Ranges from 1,125 kN to 2,250 kN (250,000 lbs to 500,000 lbs), accommodating various drilling requirements.

3. Power and Drive Systems

• Main Engines: Powered by Caterpillar diesel engines, ensuring reliable and efficient operation.

• Drawworks: Equipped with mechanical or compound drive systems, offering flexibility and performance tailored to specific drilling needs.

• Transmission: Allison transmissions provide smooth power delivery and durability.

4. Mud Circulation System

• Mud Pumps: High-capacity mud pumps ensure effective circulation and wellbore cleaning.

• Mud Tanks: Designed to handle large volumes of drilling fluid, with features to facilitate mixing and separation processes.

5. Rig Components

• Mast: Constructed to API Spec 4F standards, providing structural integrity and support during drilling operations.

• Rotary Table: Designed to API Spec 7K, ensuring reliable rotation and handling of drill string.

• Swivel: Manufactured to API Spec 8C, allowing for smooth and safe rotation of the drill string.

6. Safety and Control Systems

• Blowout Preventer (BOP): Equipped with annular and ram BOPs to control well pressure and prevent blowouts.

• Control Systems: Advanced monitoring and control systems for real-time data acquisition and operational oversight.

7. Auxiliary Systems

• Power Generation: Includes diesel generator sets to supply electrical power to rig systems.

• Lighting: Wellsite lighting systems to ensure visibility and safety during night operations.

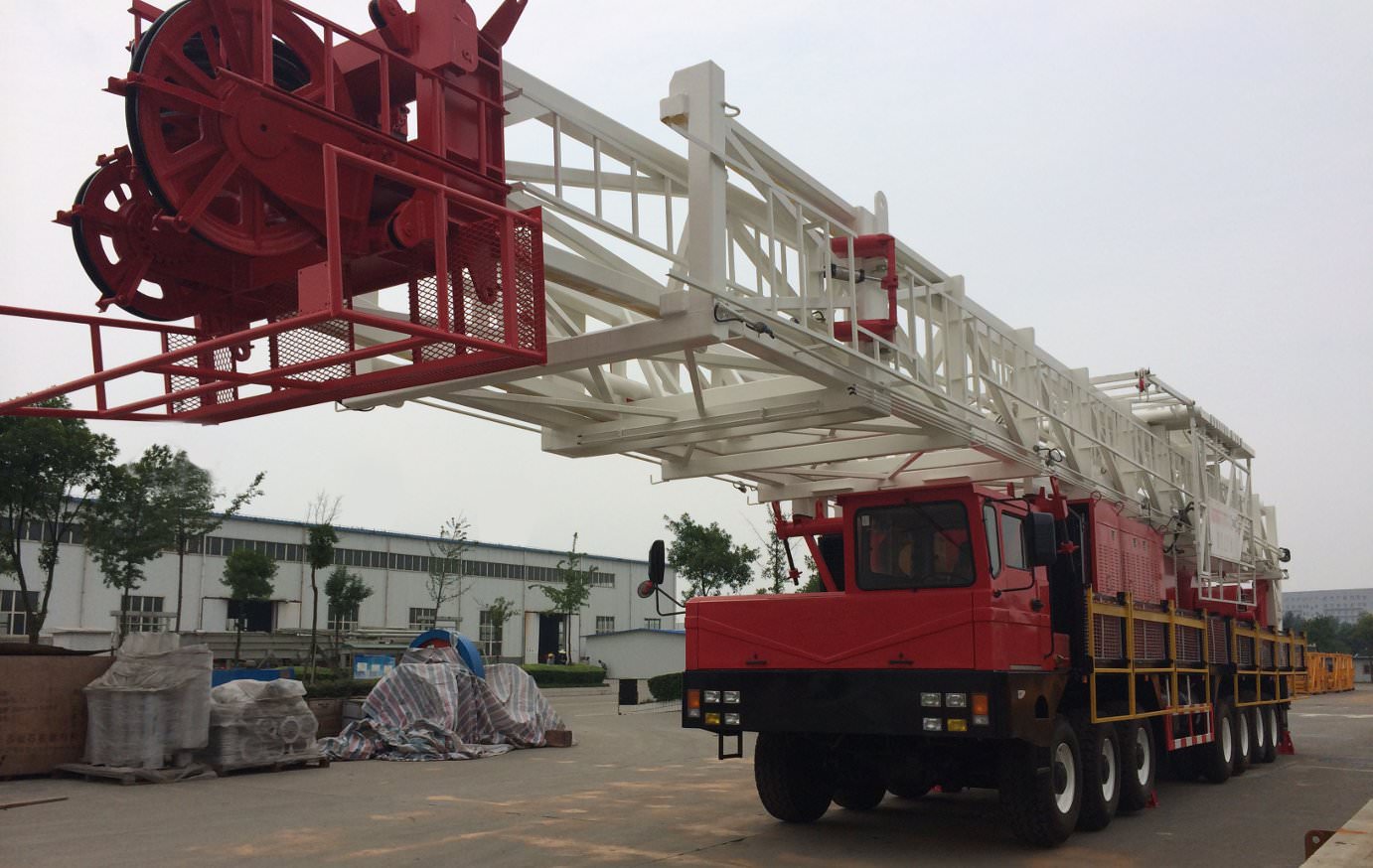

TAYMA offers a complete range truck-mounted and trailer mounted drilling rigs capable of drilling wells from 1000m to 4000m:

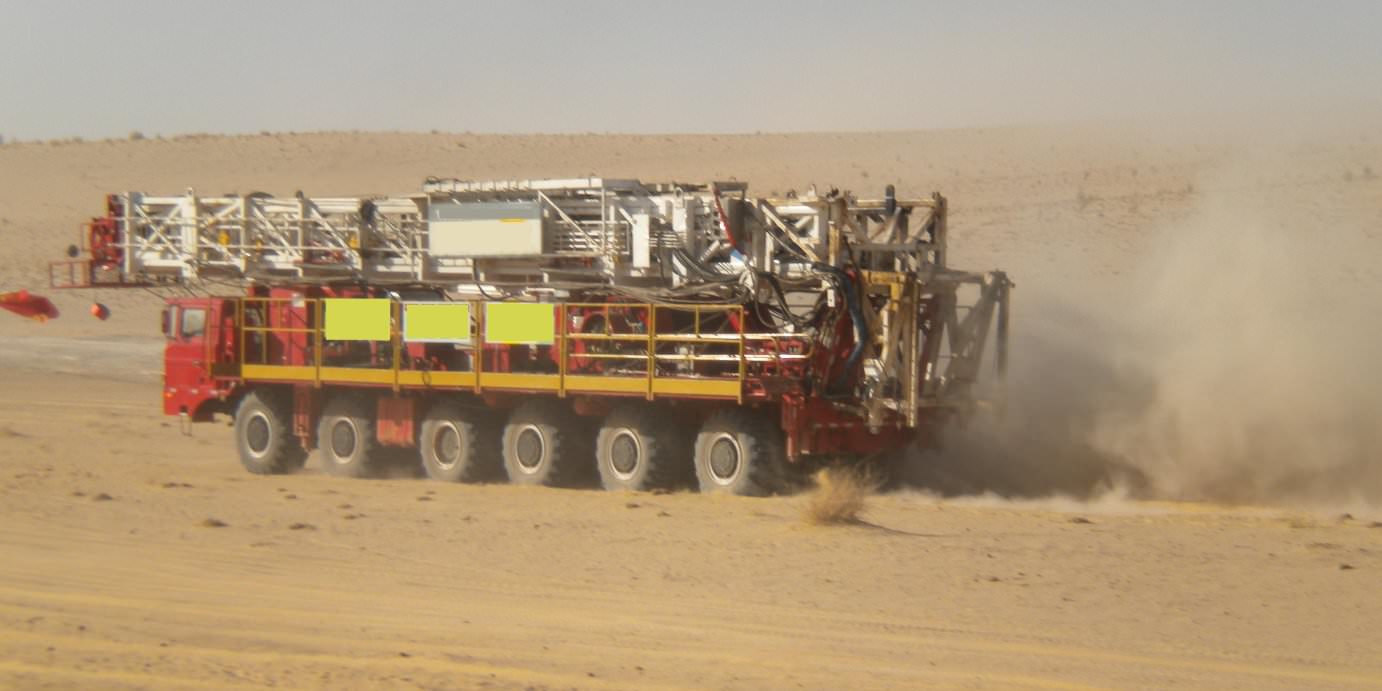

Water or oil wells of medium depth, located in steep mountain regions or deserts, are the prime domain for this mobile drilling rig.

Thanks to its lightweight design, our 2000m mobile drilling rigs provide superior handling and powerful acceleration on rough and bad terrain.

Main Specifications

• Drilling depth (4-1/2” DP): 2,000 m (6,600 ft)
• Drilling depth (5” DP): 1,500 m (4,920 ft)
• Static hook load: 1,580 kN
• Transmission mode: Mechanical
• Drawworks: 1 × 600 hp (440 kW)
• Mud pumps: 2 × 800 hp
• Main engines: 1 × 630 hp (Caterpillar C18)
• Number of axles: 6
• Mast height: 35 m (115 ft)
• Drill floor height: 4.5 m (15 ft)

For shallow wells below 2000m in depth, we also manufacture the following smaller rigs:

• 1500m mobile rig: 1,350 kN hook load, 550 hp drawworks
• 1000m mobile rig: 1,125 kN hook load, 350 hp drawworks

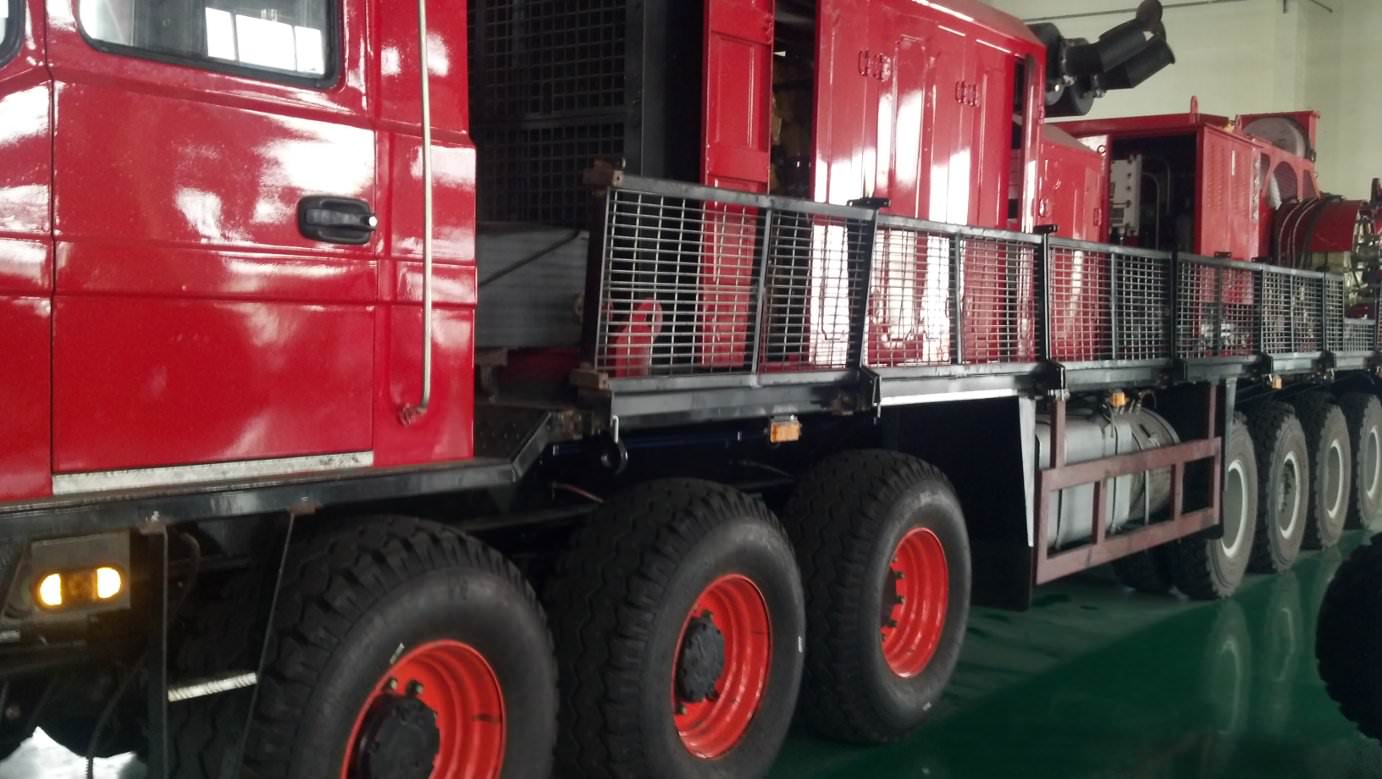

If you are looking for a geothermal drilling rig capable of drilling down to 3000m, this 750hp mobile rig is is all you will ever need.

Built upon a lightweight, yet extremely strong chassis to easily get you to even the most remote areas.

• Drilling depth (4-1/2” DP): 3,000 m (9,800 ft)
• Drilling depth (5” DP): 2,500 m (8,200 ft)
• Static hook load: 1,800 kN
• Transmission mode: Mechanical or electromechanical
• Drawworks: 1 × 750 hp (550 kW)
• Mud pumps: 2 × 1000 hp
• Main engines (mechanical drive): 2 × 540 hp (Caterpillar C15)
• Number of axles: 6
• Mast height: 36 m (118 ft)
• Drill floor height: 6 m (20 ft)

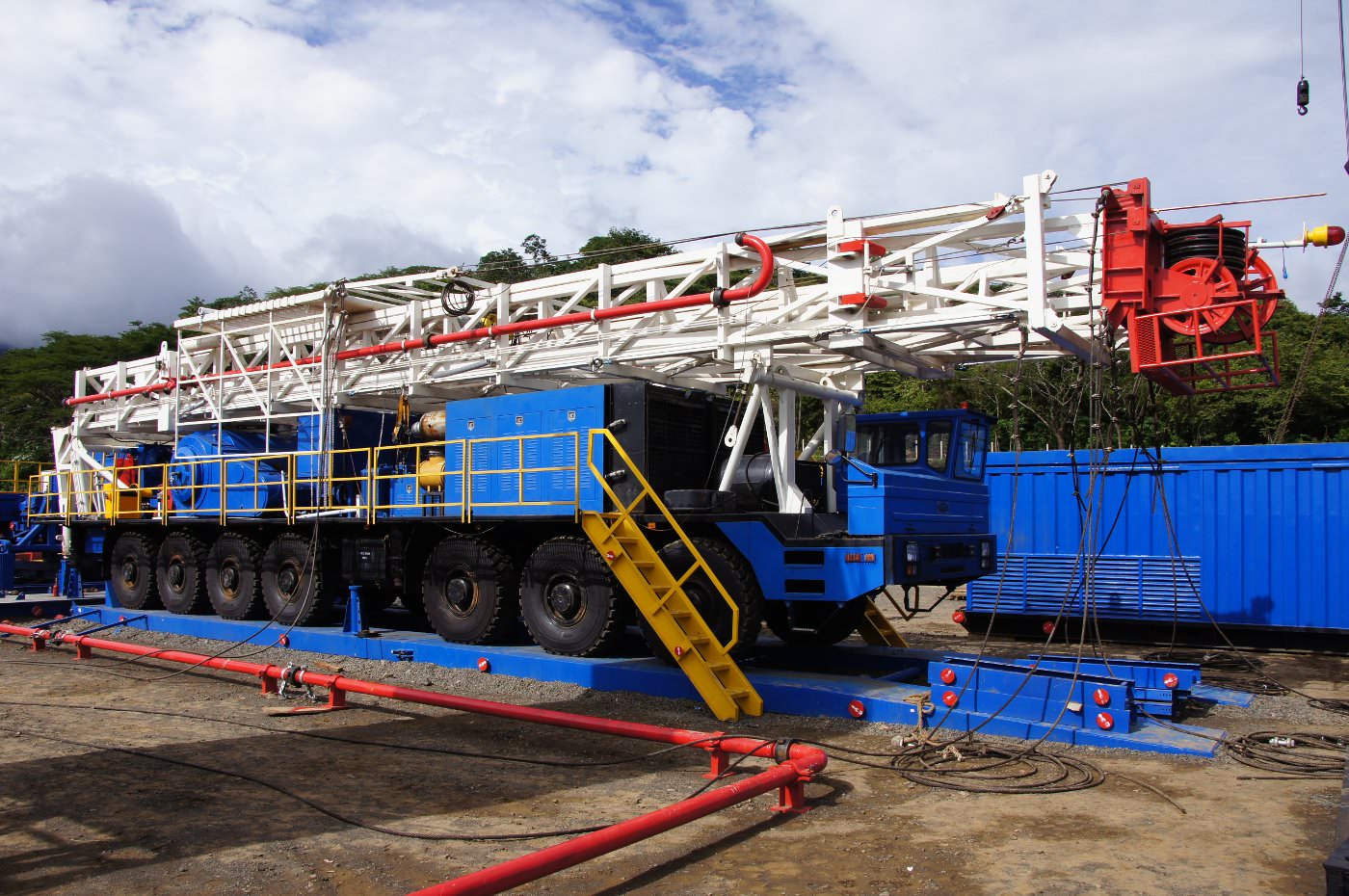

This 4000m truck-mounted rig with a power of 1000 hp is the most powerful among our mobile rig and often employed in geothermal drilling operations in remote mountain regions.

The specially designed chassis is optionally available with independent suspension on every wheel, giving it superior driving characteristics on rough and extremely muddy terrain.

• Drilling depth (4-1/2” DP): 4,000 m (13,000 ft)
• Drilling depth (5” DP): 3,000 m (10,000 ft)
• Static hook load: 2,250 kN
• Transmission mode: Mechanical or electromechanical
• Drawworks: 1 × 1000 hp (735 kW)
• Mud pumps: 2 × 1,300 hp
• Main engines (mechanical drive): 2 × 630 hp (Caterpillar C18)
• Number of axles: 7
• Mast height: 38 m (125 ft)
• Drill floor height: 6 m (20 ft) or 7.5 m (25 ft)

Applications

• Onshore Drilling: Ideal for drilling in remote and challenging terrains such as deserts, mountains, and forests.

• Geothermal Drilling: Suitable for geothermal exploration and development projects.

• Oil and Gas Exploration: Effective for exploration activities in areas with limited infrastructure.

Why Choose TAYMA Mobile Drilling Rigs

• API Certification: All components are manufactured to API specifications, ensuring quality and reliability.

• High Mobility: Self-propelled design allows for quick relocation between drilling sites, reducing downtime.

• Robust Construction: Built to withstand harsh environmental conditions, ensuring longevity and durability.

• Cost-Effective: Competitive pricing compared to established manufacturers, offering value without compromising quality.

• Comprehensive Support: Full after-sales service, including training, spare parts supply, and technical support.
